N Male Right Angle 3 Piece Crimp Connector for LMR-400
SKU: TES 436949

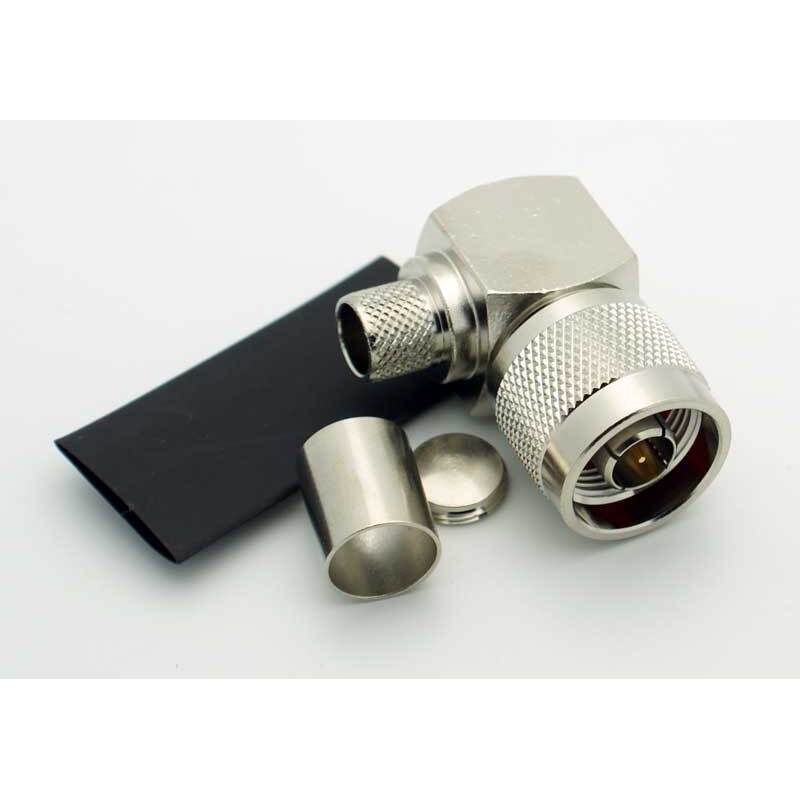

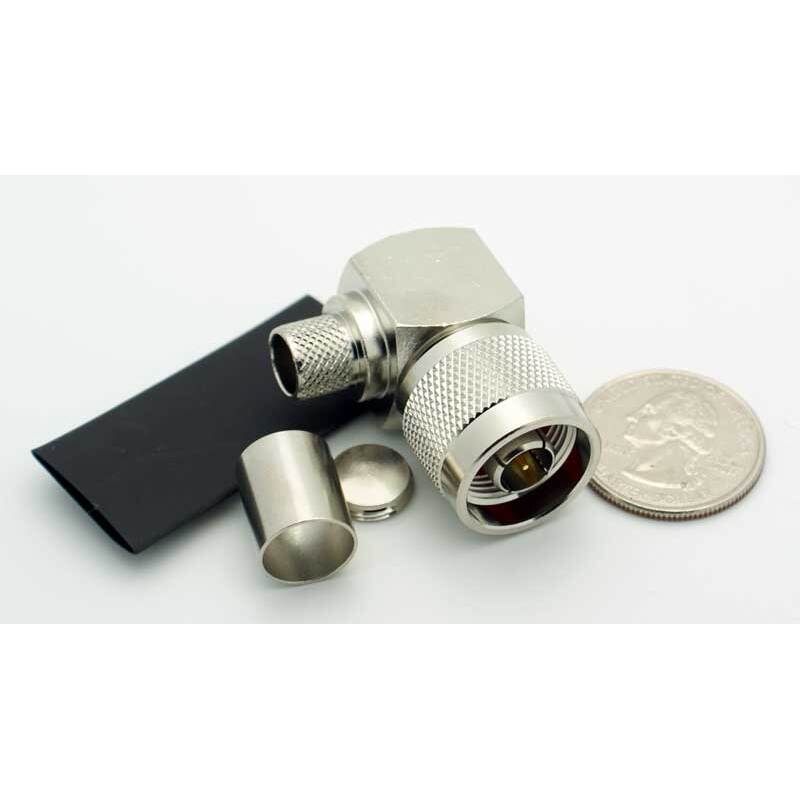

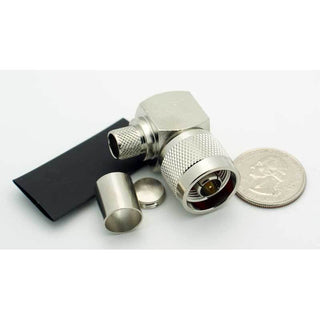

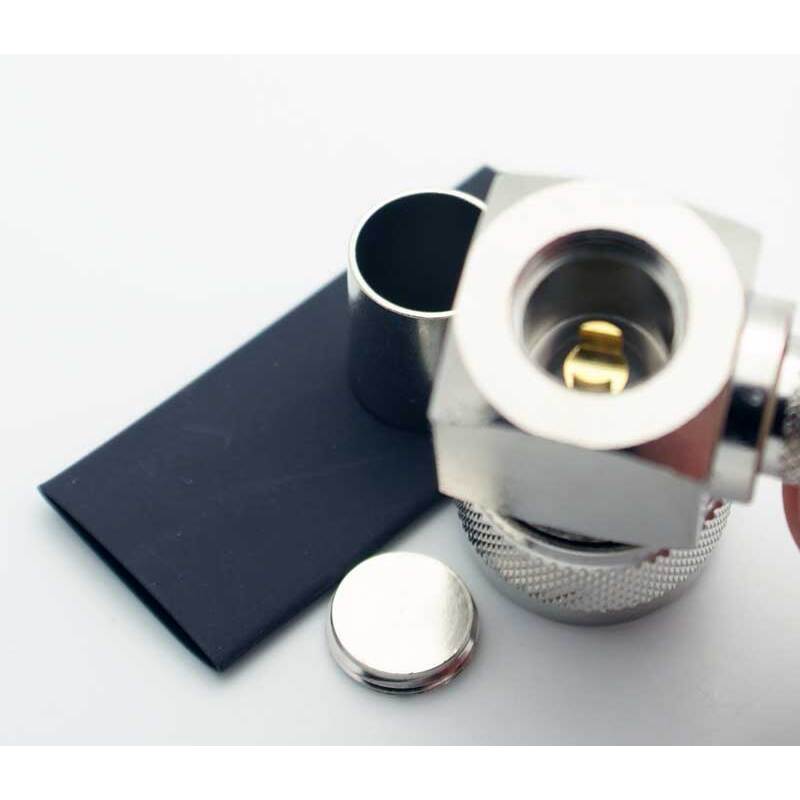

N Male Right Angle 3 Piece Crimp Connector for LMR-400 Coax Cable
Right Angle Inline / Line Mount N Male connector crimps on to LMR-400 Coax. This connector is a "3 Piece" design, meaning the center pin needs to be soldered on to the center conductor of the coax and then the connector is crimped on to the coax using the included ferrule for LMR-400. A small cap covers the soldered pin connection. The pin is fixed and cannot be removed from the connector.
Quality nickel plated with knurled grips. Gold plated brass or copper conductors.
Overall Dimensions: 1.42" Long x 1.36" Tall x .79" Diameter
Vetco stocks a complete line of RF Adapters and Connectors, including gender changers, splitters, between series adapters and end connectors.
QTY: 1 Connector
Right Angle Inline / Line Mount N Male connector crimps on to LMR-400 Coax. This connector is a "3 Piece" design, meaning the center pin needs to be soldered on to the center conductor of the coax and then the connector is crimped on to the coax using the included ferrule for LMR-400. A small cap covers the soldered pin connection. The pin is fixed and cannot be removed from the connector.
Quality nickel plated with knurled grips. Gold plated brass or copper conductors.
Overall Dimensions: 1.42" Long x 1.36" Tall x .79" Diameter
Vetco stocks a complete line of RF Adapters and Connectors, including gender changers, splitters, between series adapters and end connectors.
QTY: 1 Connector
