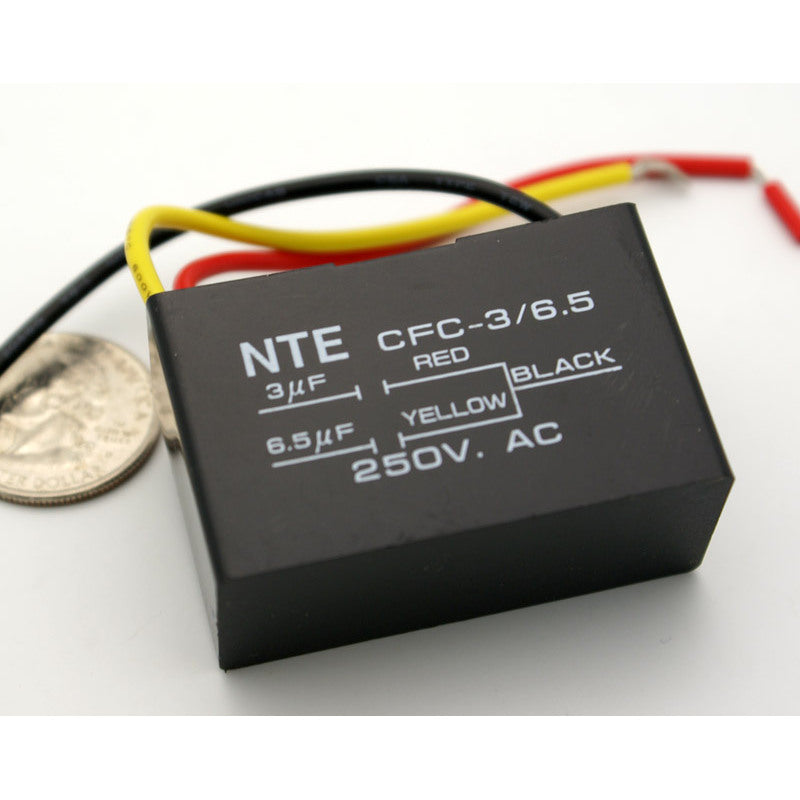

3 / 6.5 MFD 250VAC Motor Start Capacitor
3 μF + 6.5 μF (MFD) 250VAC Motor Start Capacitor
NTE Part Number: CFC-3/6.5
The CFC series is a range of metallized polyester film capacitors designed expressly for ceiling fan use. They are a self-healing flat capacitor winding with polyester film dielectric. They are mounted in a flame retardent plastic case with an epoxy resin end-seal. The CFC series are also used in other electric fans and in fluorescent lamps.
Dual Capacitor
3 Wire Hookup (4" Leads)
Dimensions: 2.017" (51MM)L x 1.258" (32MM)H x .866" (22MM) W
3 μF + 6.5 μF (MFD) 250VAC Motor Start Capacitor
NTE Part Number: CFC-3/6.5
The CFC series is a range of metallized polyester film capacitors designed expressly for ceiling fan use. They are a self-healing flat capacitor winding with polyester film dielectric. They are mounted in a flame retardent plastic case with an epoxy resin end-seal. The CFC series are also used in other electric fans and in fluorescent lamps.
Dual Capacitor
3 Wire Hookup (4" Leads)
Dimensions: 2.017" (51MM)L x 1.258" (32MM)H x .866" (22MM) W
