6 Pin (2x3) Molex .062 Male Plug Connector with Pins
MOLEX Part Number: 03-06-2061
Our Molex connectors include crimp pins!

Connector Specification:

• Free Hanging Male (Plug)
• Number of Circuits: 6
• Pin Configuration: Matrix - (2 Pin x 3 Pin)
• Pins: Included
• Dimensions: 0.75" L x 0.60" W x 0.45" H

SPECIFICATIONS:
Physical:
Color:	Natural Resin (White)
Flammability:	94V-2
Pitch - Mating Interface:	0.145 In (3.68mm)
Stackable:	No
Temperature Rating:	-40°C to +105°C
Electrical:
Current - Maximum per Contact	5A

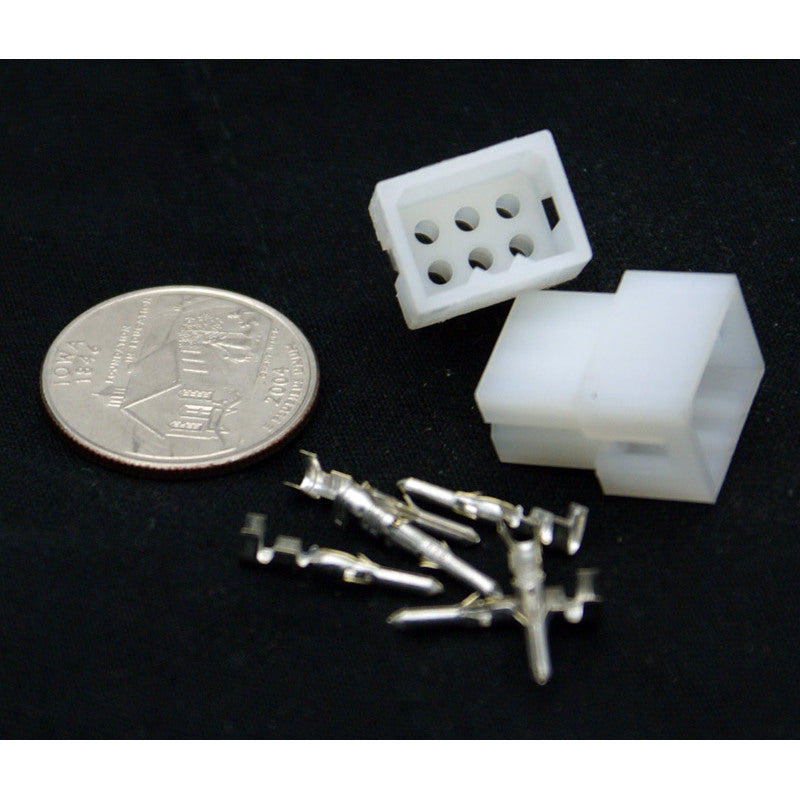

QTY: 1 Connector (2 Pictured). PINS INCLUDED!
