15 Pin (3x5) Molex .062 Female Receptacle Connector w/Pins 03-06
SKU: MOLEX-03-06-1152
15 Pin (3x5) Molex .062 Female Receptacle Connector w/Pins
MOLEX Part Number: 03-06-1152
Our Molex connectors include crimp pins!
Connector Specification:

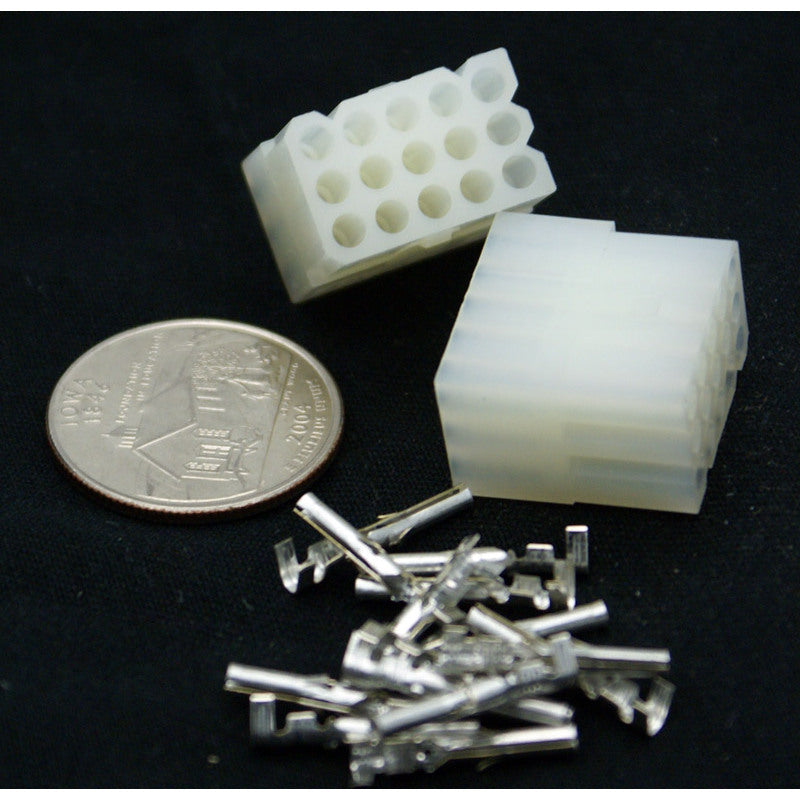

QTY: 1 Connector (2 Pictured). PINS INCLUDED!
MOLEX Part Number: 03-06-1152
Our Molex connectors include crimp pins!
Connector Specification:
- Free Hanging Female Receptacle
- Number of Circuits: 15
- Pin Configuration: Matrix (3 Pin x 5 Pin)
- Pins: Included
- Dimensions: 0.77" L x 0.49" W x 0.77"
| SPECIFICATIONS: | |
| Physical: | |
| Color: | Natural Resin (White) |
| Flammability: | 94V-2 |
| Pitch - Mating Interface: | 0.145 In (3.68mm) |
| Stackable: | No |
| Temperature Rating: | -40°C to +105°C |
| Electrical: | |
| Current - Maximum per Contact | 5A |
