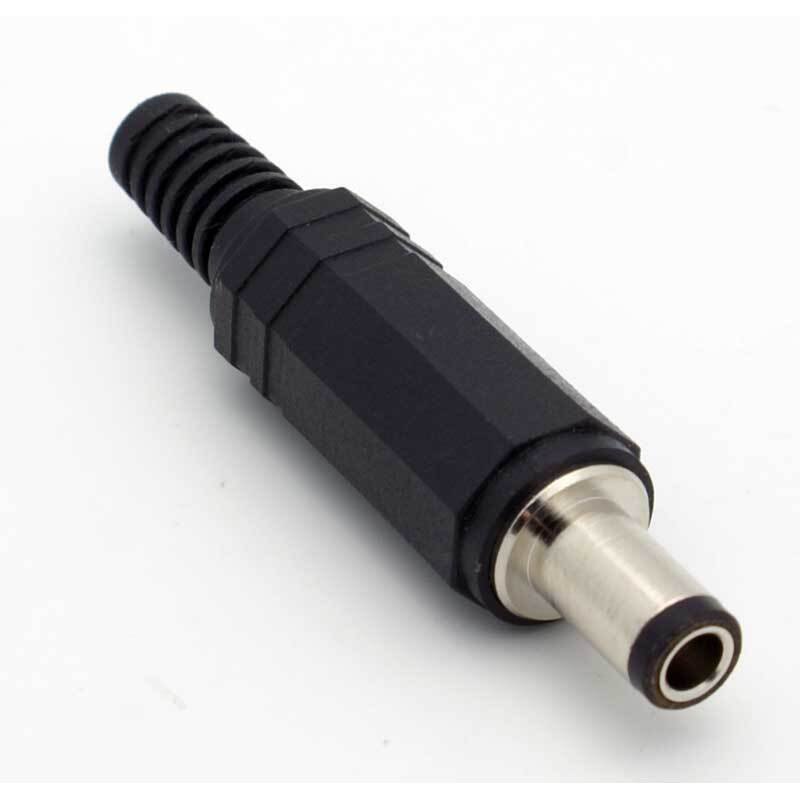

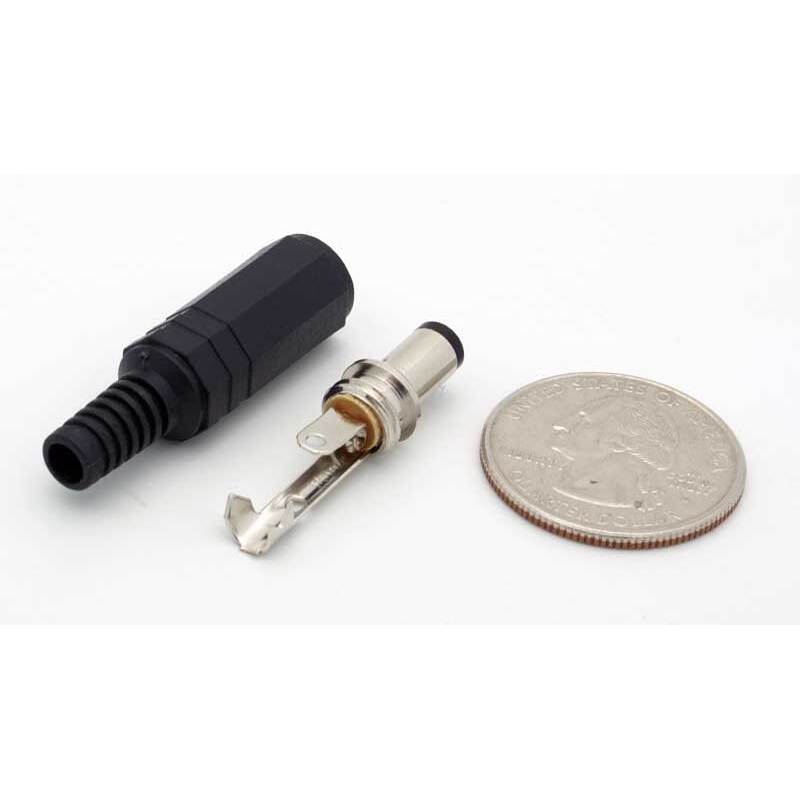

3.0mm x 5.5mm DC Power Inline Plug

Inline DC Barrel Power Plug. These plugs may also be called DC Coaxial plugs.

• Plug Size: 3.0mm
• Center Pin: 5.5mm
• Outer Diameter: 5.5mm
• Solder Terminals for 18-24awg wire
• Molded Strain Relief will fit cables up to 0.17" Diameter

This plug mates with the following jack:
3.0mm DC Panel Mount Jack VET-SP-30MMPCBF

Overall Dimensions: 1.85" Long x 0.40" Diameter
QTY: 1 Plug



Vetco stocks a wide variety of DC Barrel Plugs, Jacks, Adapters and Pig Tail Cables.
