11" x 7.8" x 1.6" ABS Box w/Aluminum Panels
SKU: 1598HBK
manufacturer: Hammond
manufacturer part number: 1598HBK
11" x 7.8" x 1.6" ABS Box w/Aluminum Panels

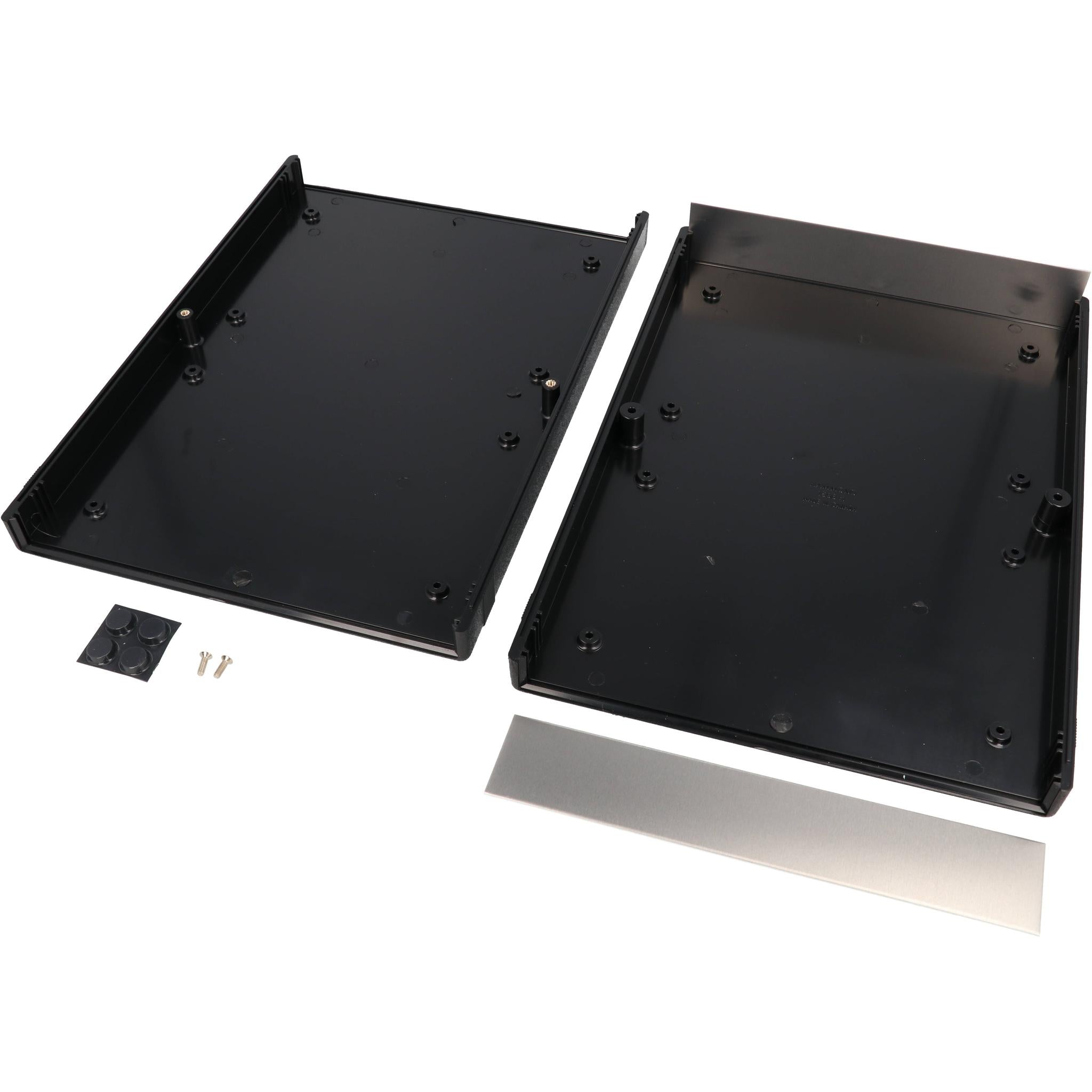

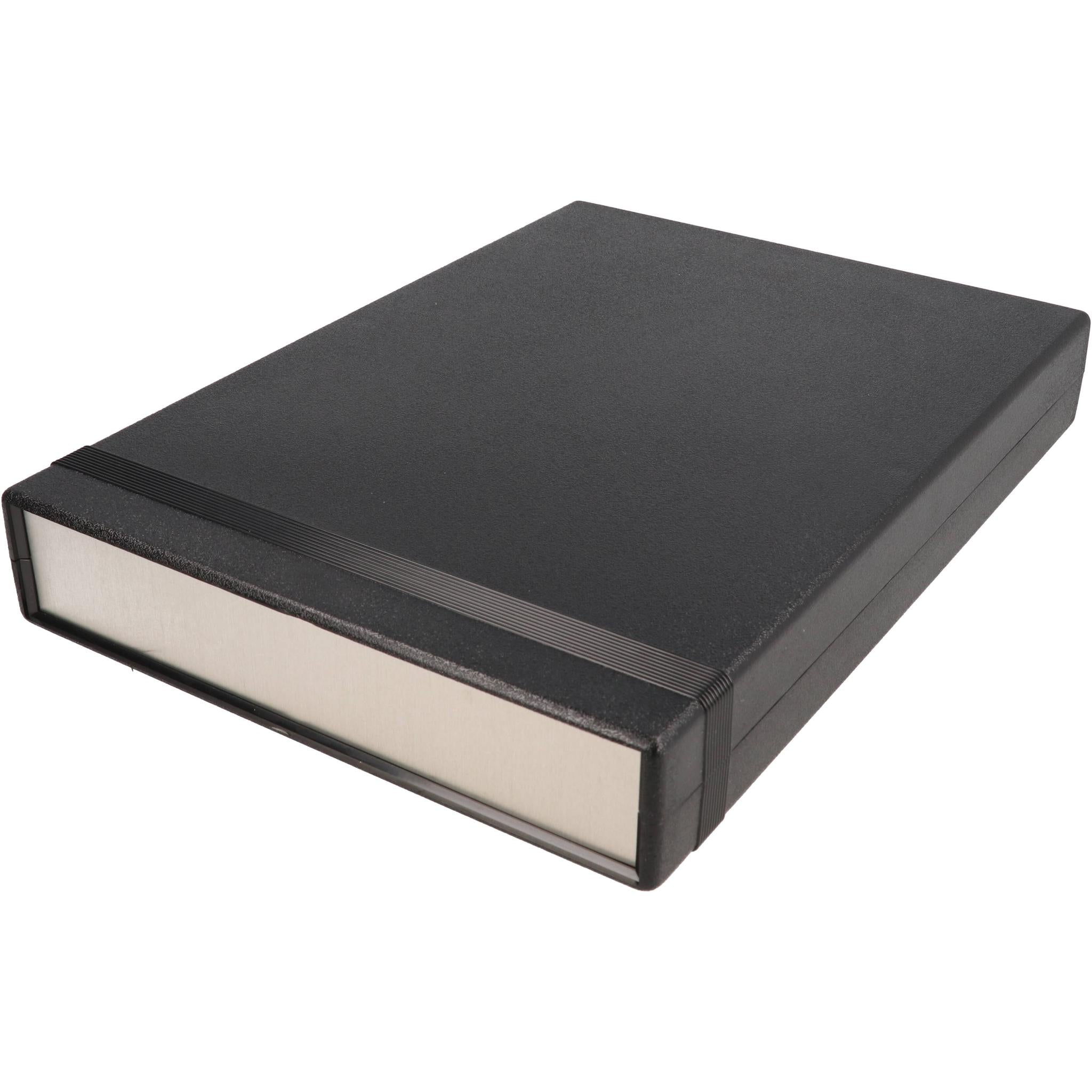

This black ABS box with aluminum end panels is a great enclosure for any project where a professional touch is desired. The removable aluminum end panels can be easily machined for mounting switches, displays, connectors, etc. The rugged ABS case is sure to stand up to the rigors of the field or your tech bench.
Features:
manufacturer part number: 1598HBK
Documentation Links
11" x 7.8" x 1.6" ABS Box w/Aluminum Panels
This black ABS box with aluminum end panels is a great enclosure for any project where a professional touch is desired. The removable aluminum end panels can be easily machined for mounting switches, displays, connectors, etc. The rugged ABS case is sure to stand up to the rigors of the field or your tech bench.
Features:
- Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
- Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- Designed to meet IP54.
- Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
- Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
- Cases halves are secured with M3 x 0.5” x 10 mm (0.39”) Philips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
- Integral horizontal P.C. card mounts on Eurocard centers.
- P.C. card standoffs molded into top & bottom half of enclosure - require #6 x 1/4" (6.4mm) screws.
- Matte textured black
manufacturer: Hammond
manufacturer part number: 1598HBK
11" x 7.8" x 1.6" ABS Box w/Aluminum Panels
This black ABS box with aluminum end panels is a great enclosure for any project where a professional touch is desired. The removable aluminum end panels can be easily machined for mounting switches, displays, connectors, etc. The rugged ABS case is sure to stand up to the rigors of the field or your tech bench.
Features:
manufacturer part number: 1598HBK
Documentation Links
11" x 7.8" x 1.6" ABS Box w/Aluminum Panels
This black ABS box with aluminum end panels is a great enclosure for any project where a professional touch is desired. The removable aluminum end panels can be easily machined for mounting switches, displays, connectors, etc. The rugged ABS case is sure to stand up to the rigors of the field or your tech bench.
Features:
- Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
- Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- Designed to meet IP54.
- Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
- Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
- Cases halves are secured with M3 x 0.5” x 10 mm (0.39”) Philips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
- Integral horizontal P.C. card mounts on Eurocard centers.
- P.C. card standoffs molded into top & bottom half of enclosure - require #6 x 1/4" (6.4mm) screws.
- Matte textured black
